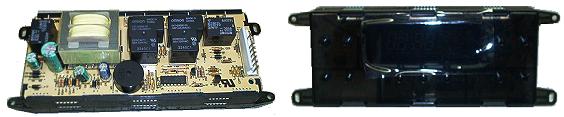

486752 Bosch/Thermador Range/Stove/Oven Timer Repair

Don't replace your Thermador range, replace the timer and save hundreds of dollars!

The Thermador 486752 ERC is NLA (discontinued by the manufacture) but we often have rebuilt units in stock! Our replacement timer is suitable to replace Thermador 14-33-347, 35-00-571, 35-00-751 and 487604 which are all substituted by 486752.

Note that when we repair this timer we always replace the display with a brand new display and all relays that are prone to failure are also replaced. Our in-stock reconditioned timers also have new displays and relays. These new replacement displays are extremely difficult to obtain and replacing the display is the only effective means to correct a dim display problem. Never send your thermador timer to a repair shop that does not have new displays. The reason is that there are only three ways to correct a dim display problem:

Replace the display with a brand new display. This will restore the display back to new condition so it should remain visible for 7 - 10 years.
Replace the display with a used display harvested from another timer. In this case, you have no way of knowing how old the donor timer is. If the display was taken off of a six-year-old timer, its life expectancy is only 1 to 4 years.
Change the resistors in the board to send more current to the display. This is a temporary "sugar high" that will burn out the display within a few months. So, it looks like the problem has been corrected when, in reality, it is just a ruse.

Order Now

We have special pricing and core charges when ordering this timer from our inventory. The core charge will be refunded if you send back your existing (failed) timer.

Order Type	Price	Refundable Core Charge	Total¹
Reconditioned Timer (when available)	$285	$50	$335

¹Shipping is not included in the above prices but reconditioned and new timers all come with a full year warranty.

This timer is suitable for these Thermador range models:

RDDS30
RDDS30QW
RDDS30V
RDDS30VQB
RDDS30VRS
RDF30

RDF30QB
RDF30QW
RDF30RS
RDFS30
RDSS30
RED30V

RED30VQB
RED30VQRS
RED30VQW
REF30
REF30QB
REF30QW

REF30RS
RES30
RES30QB
RES30RS
RES30W

Failure codes, problems, and resolutions for Bosch/Thermador timer model # 486752

Manufacturer :

Bosch/Thermador

Part Number :

486752

Appliance Type :

Range/Stove/Oven

Color :

Description :

Electronic Range/Oven Timer

Do you have a failed Bosch/Thermador 486752 timer?
Click here:
We can repair or replace your faulty 486752 timer.

Recent Service Requests for Bosch/Thermador Part Number 486752

City	Model Number	Failure Code	Problem Description	Resolution
Takoma Park, Maryland	REDFS30Q	N/A	Timer readout is too dim to be visible	Repaired
coquitlam, British Columbia	RDSS30RS	N/A	Oven produces heat but will turn off at random - sometimes in just minutes and sometimes after 30 or more minutes. At times it can be restarted immediately and other times it needs to sit for a bit before it can be restarted. We have tried turning breaker off and letting sit for a while to see if that would reset it, but the oven continued to perform intermittently.	Repaired
Pinellas Park, Florida	RDDS30VRS	F1	Broiler works fine. Oven does not sense when has reached set degree than F1 error occurs. Example cookies burn within minutes. Closing on house need first available part refurbished or new.	Awaiting receipt of timer
Soquel, California	RDDS30	N/A	Temp display dim/not legible	Awaiting receipt of timer
Bountiful, Utah	RDDS30VQB	N/A	The Oven will not turn on and the temperature adjustment is not displayed.	Awaiting receipt of timer
Calgary, Alberta	RDFS30	none	Does not heat the oven well. The top coil only turns on for a very brief amount of time. The bottom coil doesn't turn off at all. Test heating coils with 220V and both work. The thermister is also working properly. Problem likely exists in the two Omron relays (that control the power to the two coils), which need to be replaced on the board.	Repaired
brossard, Quebec	ref30rs	none	time and oven temperature indicater very dim	Awaiting receipt of timer
Littleton, Colorado	RDDS30VQ	None	Display went dim and now out completely.	Repaired
toronto, Ontario	rdss30	dim display	dim display	Awaiting receipt of timer
toronto, Ontario	rdss30	dim display	dim display	Awaiting receipt of timer
Langley, Washington	RDDS30V	none	1) LCD is dim, cannot read it. And 2) Upper right button does not catch and stay in; falls out during cleaning, black plastic nib is broken. And 3) If any button stuck F1 appears.	Repaired
Los Altos, California	RDDS30V	Unknown -- but appli	I had my Thermador timer repaired by you back in March 2017. It has worked well since but this February unfortunately the appliance failed again and was beeping constantly. We are not currently at the house but a repairman diagnosed a failed control board. The tenants had to disconnect power to the appliance stop the beeping. The repairman wants to replace the appliance but I would prefer to replace the timer/control board. I will be at the house the weekend of May 13th-14th and can do it then. I can return the broken timer afterwards to you. Can you ship me a reconditioned model to install?	Awaiting receipt of timer
Edmonton, Alberta	RDSS30	N/A	The temperature display on my Thermador dual fuel range is too dim to read.	Awaiting receipt of timer
Howell, Michigan	Rdf30	N/A	Only cancel button works. None of the othe buttons work	Awaiting receipt of timer
Beaconsfield, Quebec	RED 30 VRS	just flashing	Just the oven not working. It will turn on but after a few minutes it turns off.	Awaiting receipt of timer
SOUTHPORT, Connecticut	RDF30 30"	N/A	READOUT IS FAILING	Awaiting receipt of timer
Webster, New York	RDF30QB	N/A	Cannot read display and minus button is not working	Awaiting receipt of timer
Medusa, New York	RDF30Q	N/A	oven does not heat	Awaiting receipt of timer
Tofino, British Columbia	RDDS 30 VRS	N/A	Cannot see display Oven not heating properly	Repaired
Belmont, Massachusetts	RDFS30	None	Display is DIM / Unreadable	Awaiting receipt of timer
