KitchenAid Built-In Electric Oven KEBS277DWH1 Timer Repair

What is the timer/clock part number for the KitchenAid KEBS277DWH1 Built-In Electric Oven?

Timer part number 4448871 for KitchenAid KEBS277DWH1

The KEBS277DWH1 Built-In Electric Oven uses timer part number 4448871.

Do you have a failed KitchenAid KEBS277DWH1 control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty KitchenAid KEBS277DWH1 timer.

KEBS277DWH1 are also sometimes referred to using these Alternative Names/Model numbers

Whirlpool KEBS277DWH1 Built-In Electric Oven

KEBS277DWH1 Schematic and Wiring Diagrams

Oven Parts diagram
KEBS277DWH1 Built-In Electric Oven Oven Parts diagram

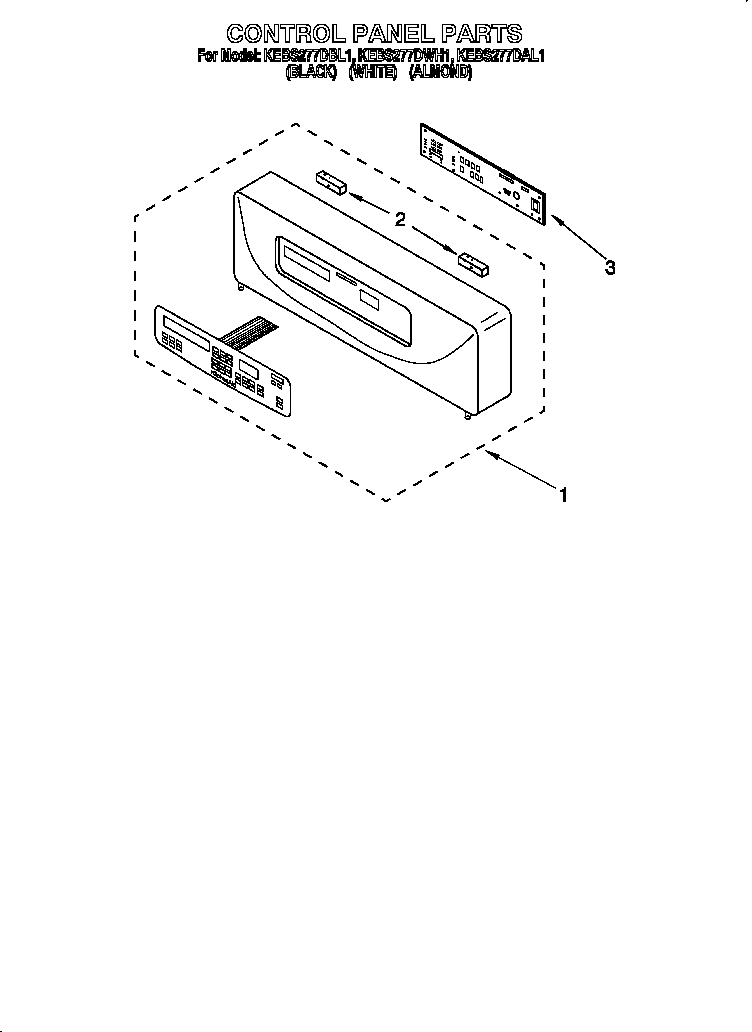

Control Parts diagram
KEBS277DWH1 Built-In Electric Oven Control Parts diagram

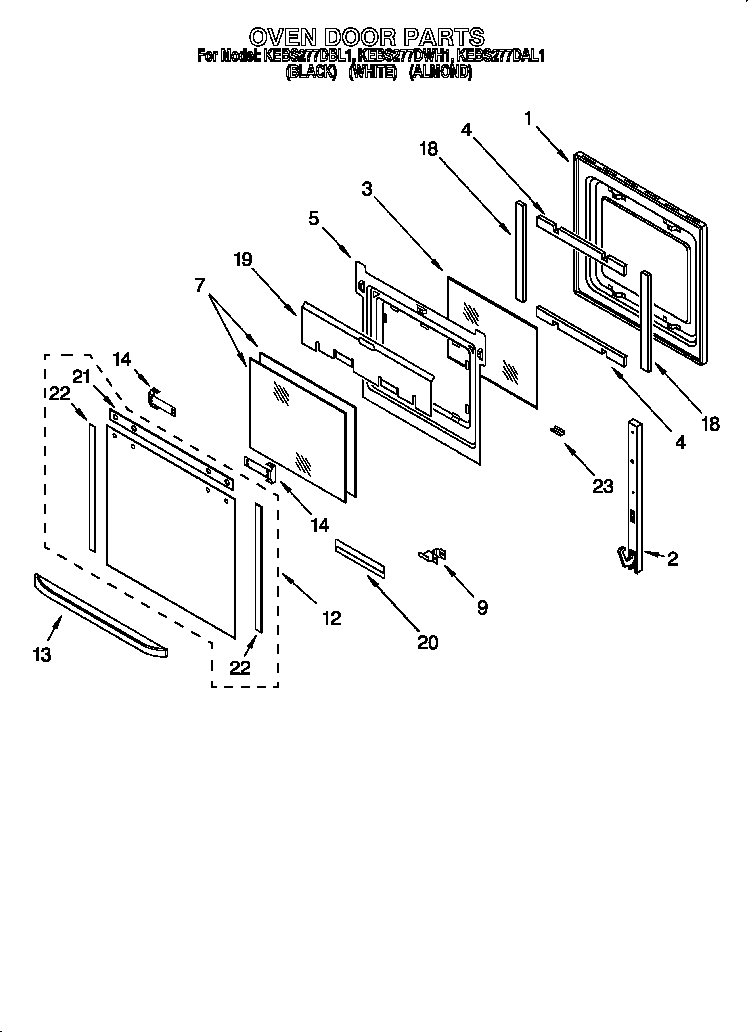

Oven door Parts diagram
KEBS277DWH1 Built-In Electric Oven Oven door Parts diagram

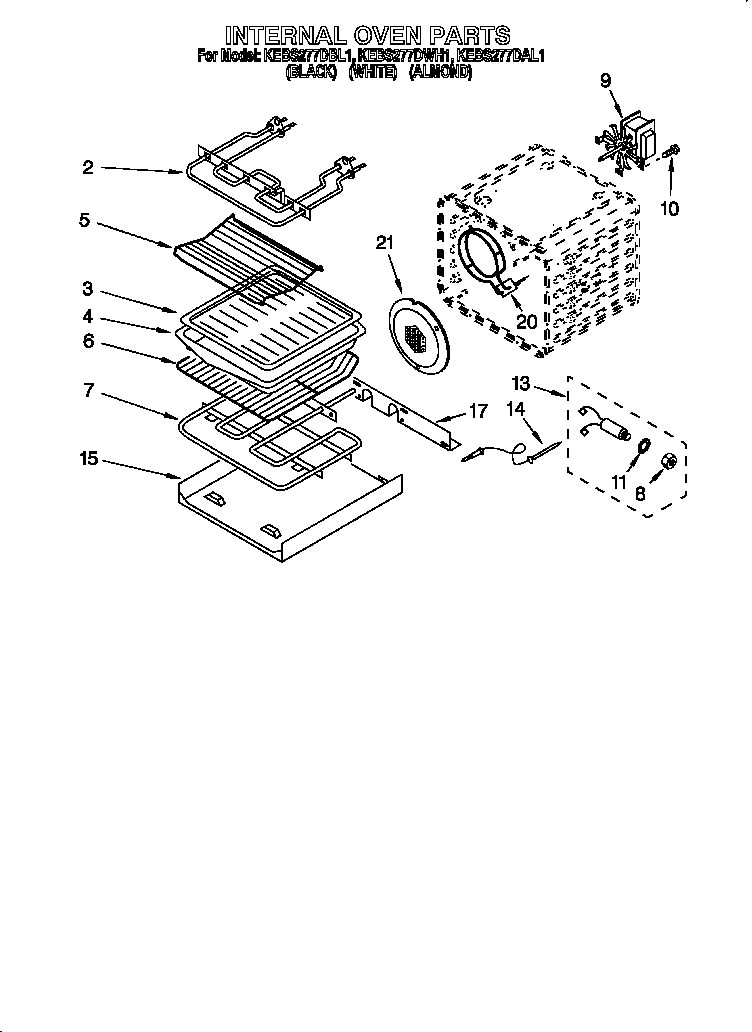

Internal oven Parts diagram
KEBS277DWH1 Built-In Electric Oven Internal oven Parts diagram

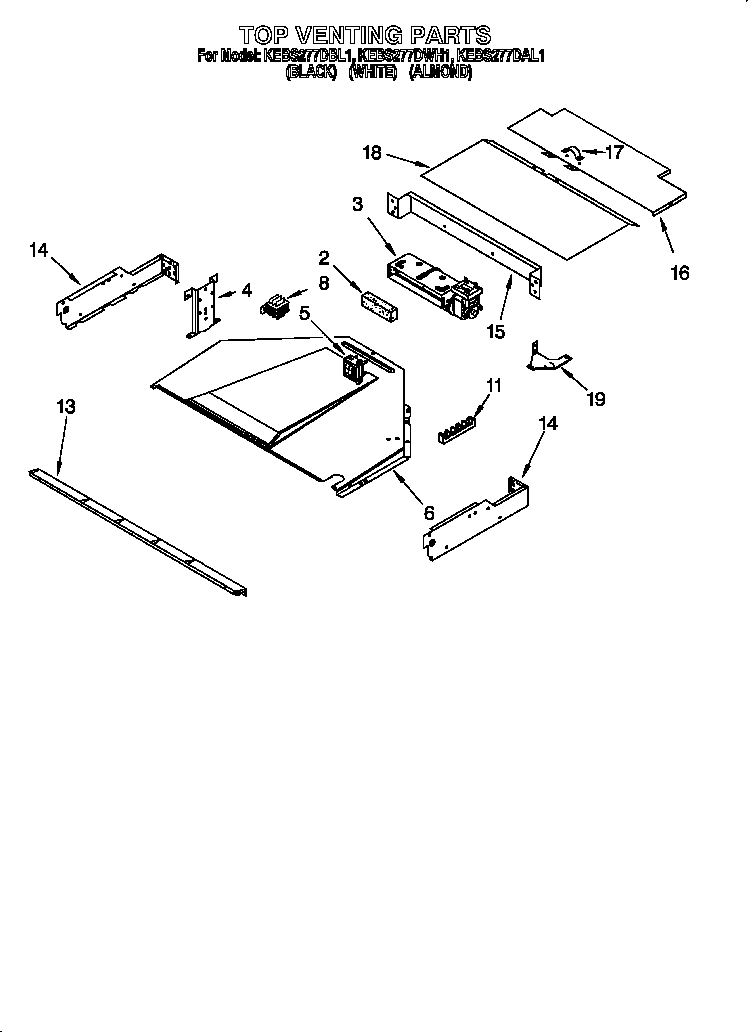

Top venting Parts diagram
KEBS277DWH1 Built-In Electric Oven Top venting Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Elizabeth, ColoradoWhen the oven is used for any length of time we get a PF error and the oven shuts off.Awaiting receipt of timer

Common problems for KitchenAid Built-In Electric Oven KEBS277DWH1 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your KEBS277DWH1 timer-related problem.
I have a KitchenAid Double Built In Oven Superba KEBS277DWH1. The digitial screen keeps lighting up saying to SET PROB TEMP. Any insight on how to set the prob temp? Thanks!!
I recently helped install a KitchenAid double oven (model KEBS277BWH-0) that has been unused for several years(9ish). Upon initial power on, the ECR appears to operate correctly, but within a min or so the fault F-1 appears. I can clear it and if I start either oven (bake or broil) it will appear like it's running correctly, but neither will heat. I have looked for a replacement ECR but with no luck. Is there an equivalent part to replace it with or a commonly failed component on the card that would be replaceable? Is there anything else I should check before continuing down that track?
This is my second message (don't know if the first one reached you). I'm having trouble installing the new control panel I bought for this oven. I've removed the old one from the computer, and I can't seem to connect the ribbon (strip of 16 terminals) into the receptacle on the computer board. It seemes to be pinching the ribbon, and I can't get it to seat all the way in. Please advise ASAP. Marc Rosenblum
Lower oven only gets up to 200 degrees or so. I don't have a wiring diagram. Before I tare into it, should I be testing the heating element or the thermostat? I know how to test continuity but thermostat has 7 connections, not 5. Thermostat was replaced just a year ago by a friend (now deceased) and had a heck of a time finding a replacement as part is discontinued. Any help would be appreciated.
I have a double oven - Model # XXXXX - I cleaned both the top and bottom ovens today and the top oven does not heat - the bottom oven is fine - am clueless as to why - please help
