General Electric Electric Wall Oven JKP45WP1 Timer Repair

What is the timer/clock part number for the General Electric JKP45WP1 Electric Wall Oven?

Timer part number WB27K5047 for General Electric JKP45WP1

The JKP45WP1 Electric Wall Oven uses timer part number WB27K5047.

Do you have a failed General Electric JKP45WP1 control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty General Electric JKP45WP1 timer.

JKP45WP1 are also sometimes referred to using these Alternative Names/Model numbers

GE JKP45WP1 Electric Wall Oven

JKP45WP1 Schematic and Wiring Diagrams

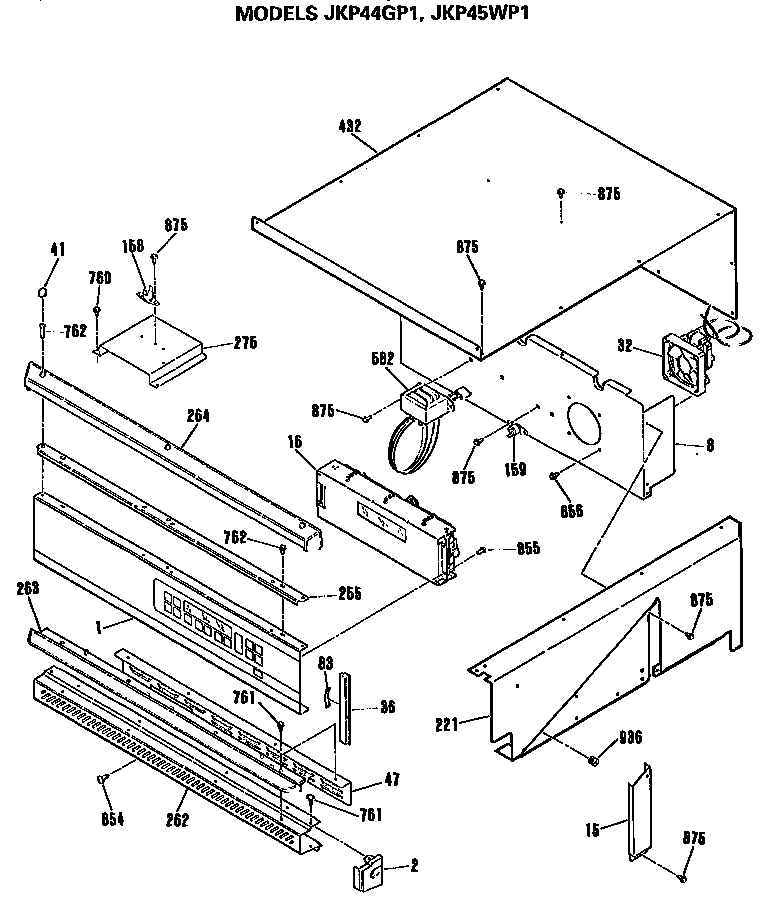

Control Parts diagram
JKP45WP1 Electric Wall Oven Control Parts diagram

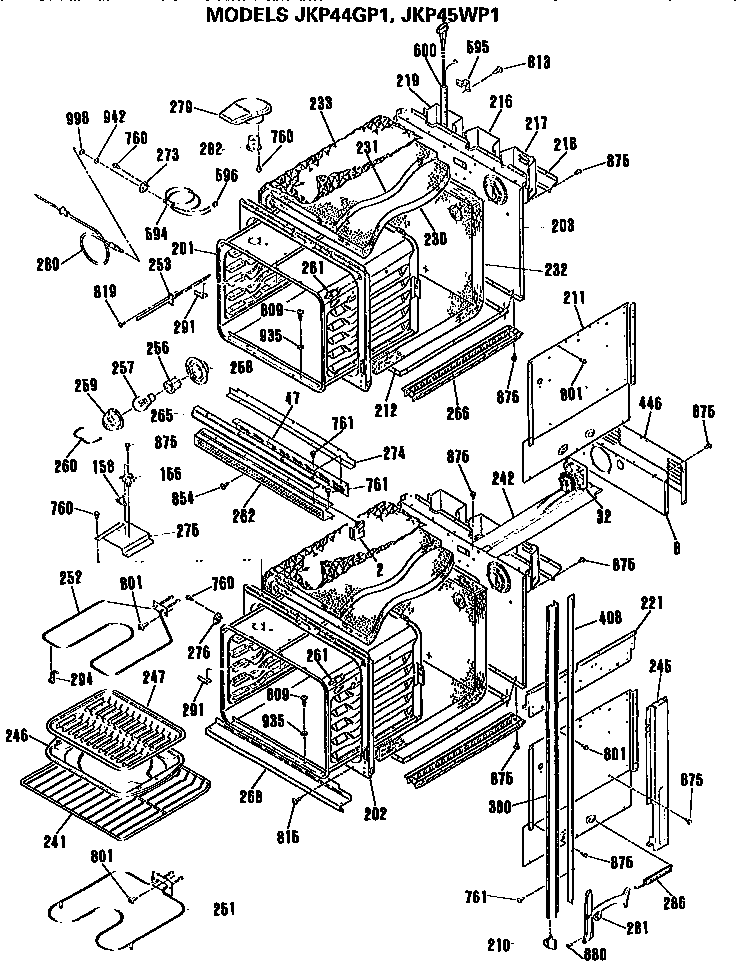

Ovens Parts diagram
JKP45WP1 Electric Wall Oven Ovens Parts diagram

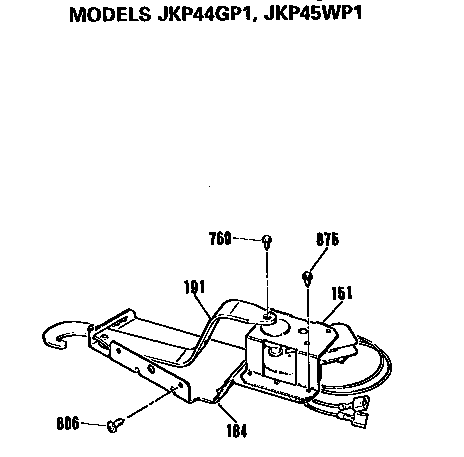

Door lock Parts diagram
JKP45WP1 Electric Wall Oven Door lock Parts diagram

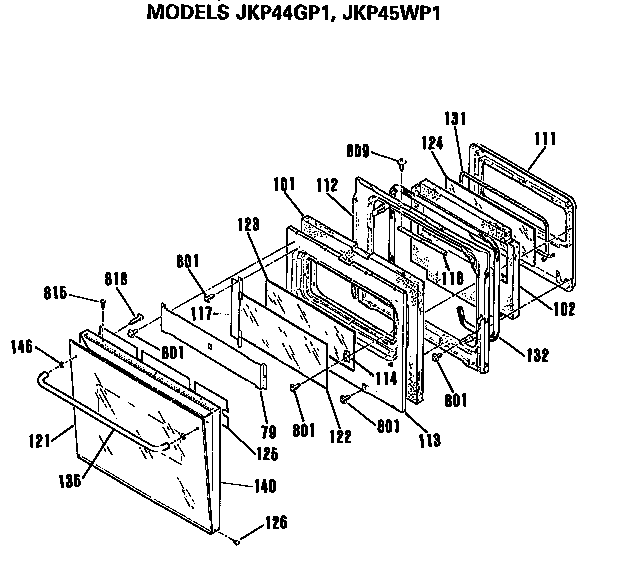

Door Parts diagram
JKP45WP1 Electric Wall Oven Door Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Petaluma, CaliforniaCode beeps after oven is turned off. Upper oven is not heating at all and turns itself off after a couple of minutes without showing oven temperature (only shows set temp)Repaired

Common problems for General Electric Electric Wall Oven JKP45WP1 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your JKP45WP1 timer-related problem.
Top oven just stopped working the other day out of the blue. Bottom Oven works just fine. Top oven (broil and bake elements) will not heat at all. Self Clean will not work either. The clock and display work just fine. When you press bake and set the temp and you can hear a click to start the elements but no heat (you hear a click under normal use even when it cycles the elements on and off while maintaining proper temp and upon startup). About another minute later another click and so forth. The display just shows 100 degrees, normal starting display temp.
I have a model JKP45 double oven (Actual model is jkp45wopjwg and SN is tf6887360) . It keeps "beeping" showing a code of "F1" what does this mean? I turned the oven off and it starts back up beeping. I held in the "Cancel" button until it beeped and that did no goood. Any help is appreciated. Thanks.
