Whirlpool Free Standing - Electric GJSP84902 Timer Repair

What is the timer/clock part number for the Whirlpool GJSP84902 Free Standing - Electric?

Timer part number 9754260 for Whirlpool GJSP84902

The GJSP84902 Free Standing - Electric uses timer part number 9754260.

Do you have a failed Whirlpool GJSP84902 control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Whirlpool GJSP84902 timer.

GJSP84902 Schematic and Wiring Diagrams

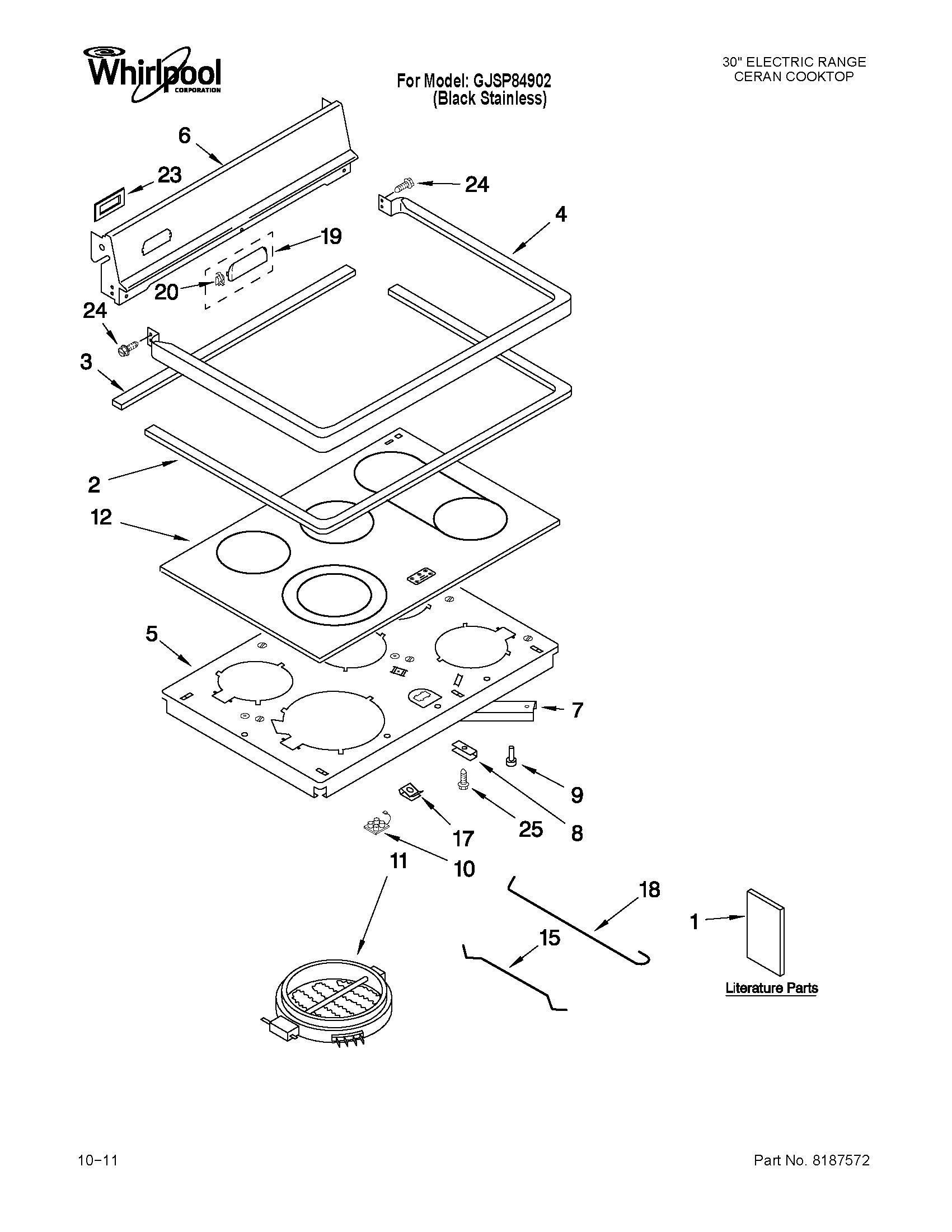

Cooktop Parts diagram
GJSP84902 Free Standing - Electric Cooktop Parts diagram

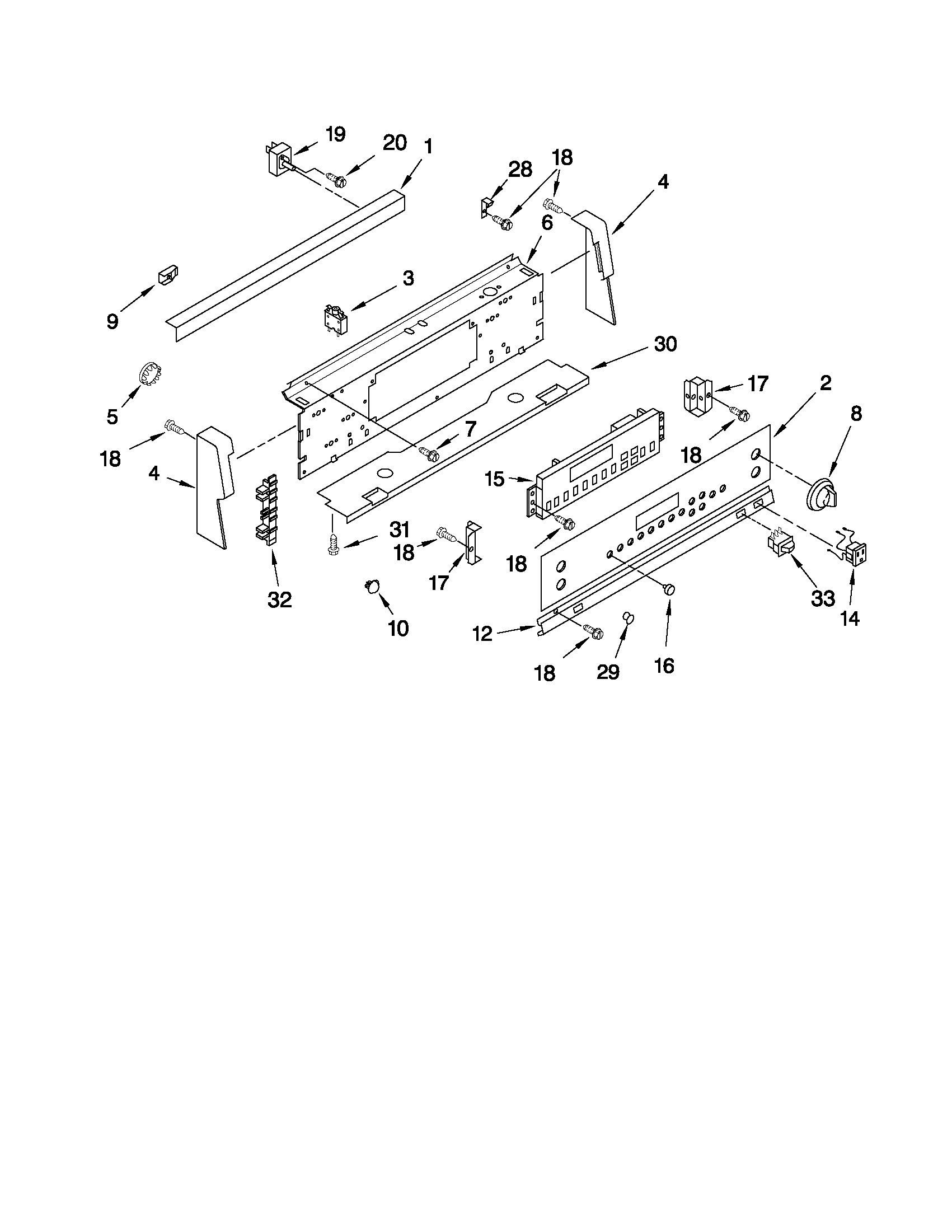

Control panel Parts diagram
GJSP84902 Free Standing - Electric Control panel Parts diagram

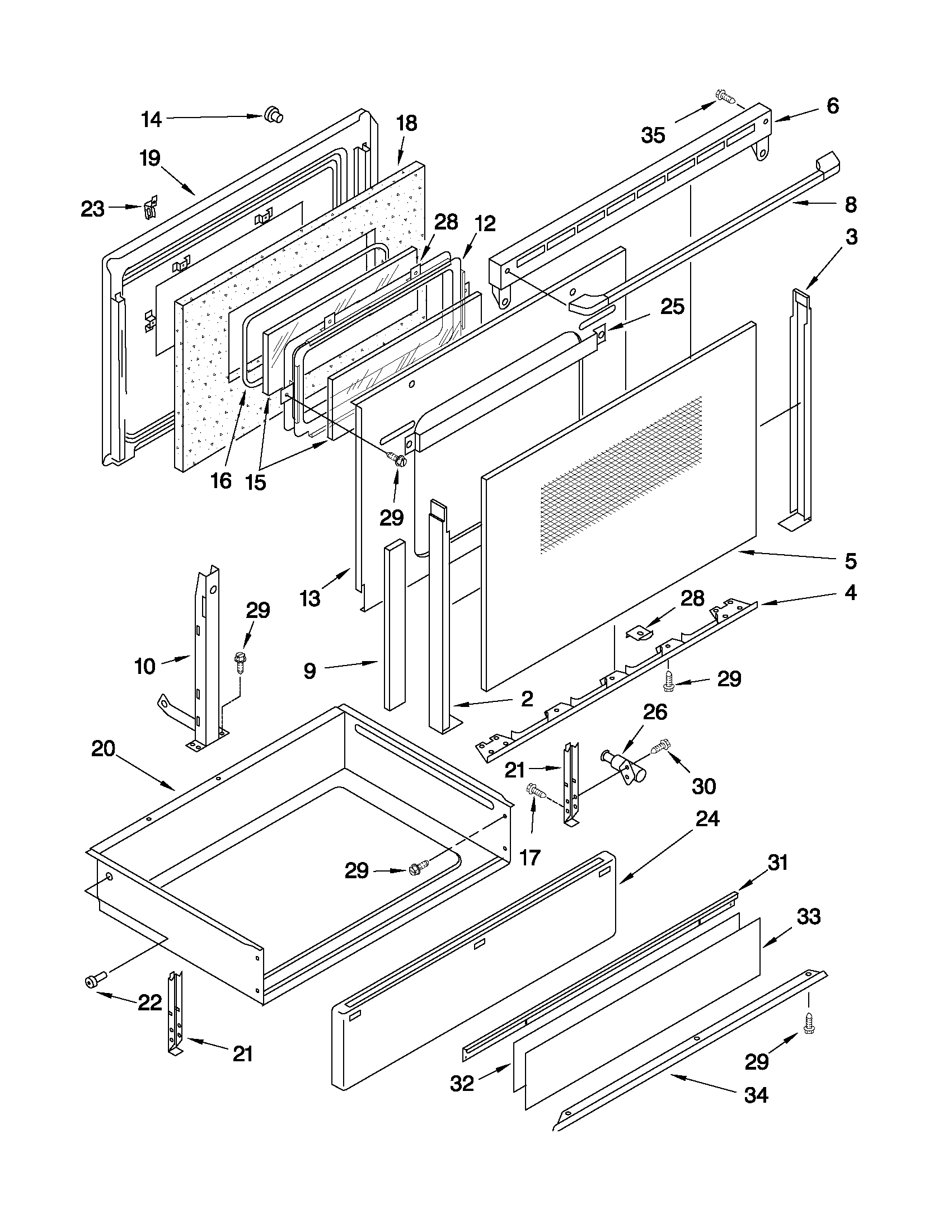

Door and drawer Parts diagram
GJSP84902 Free Standing - Electric Door and drawer Parts diagram

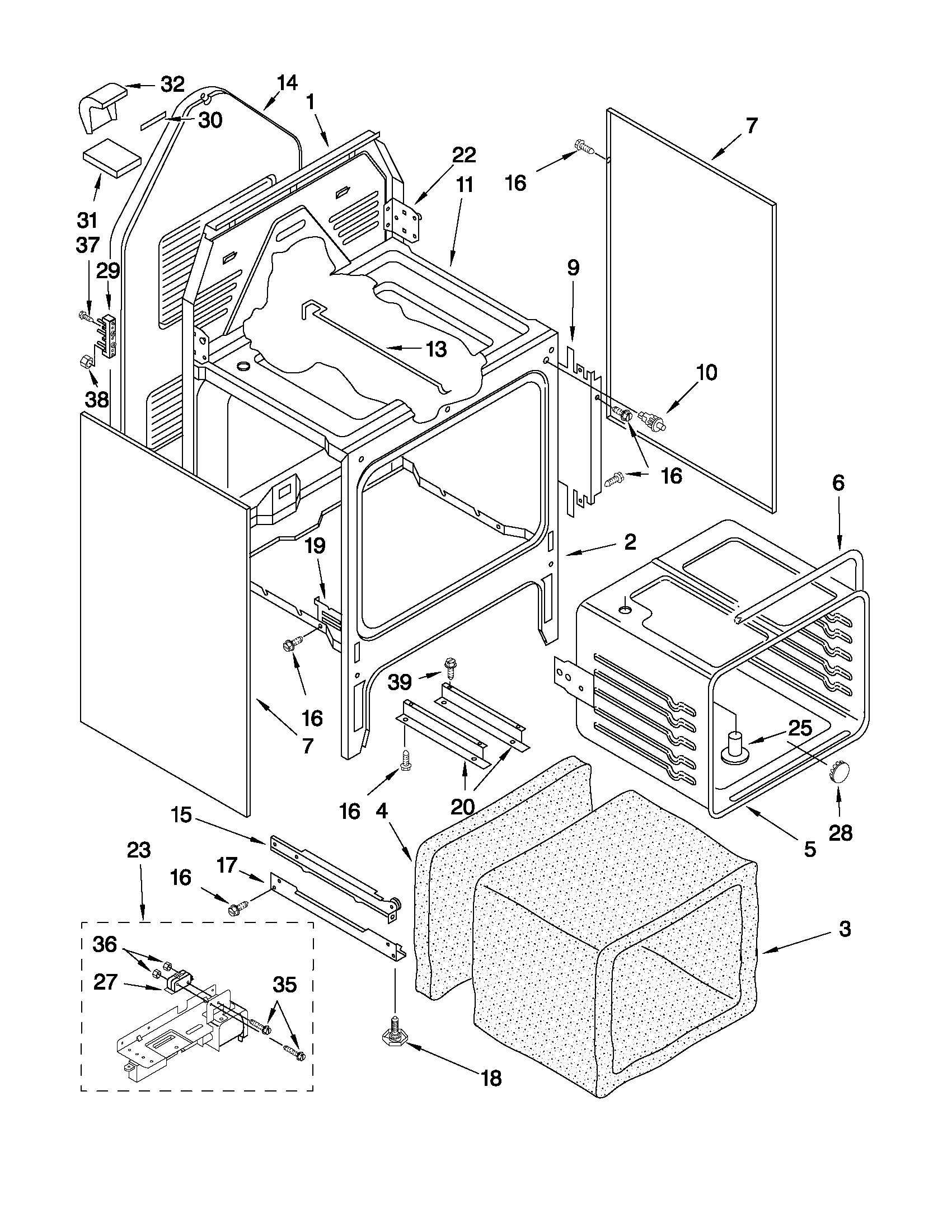

Oven chassis Parts diagram
GJSP84902 Free Standing - Electric Oven chassis Parts diagram

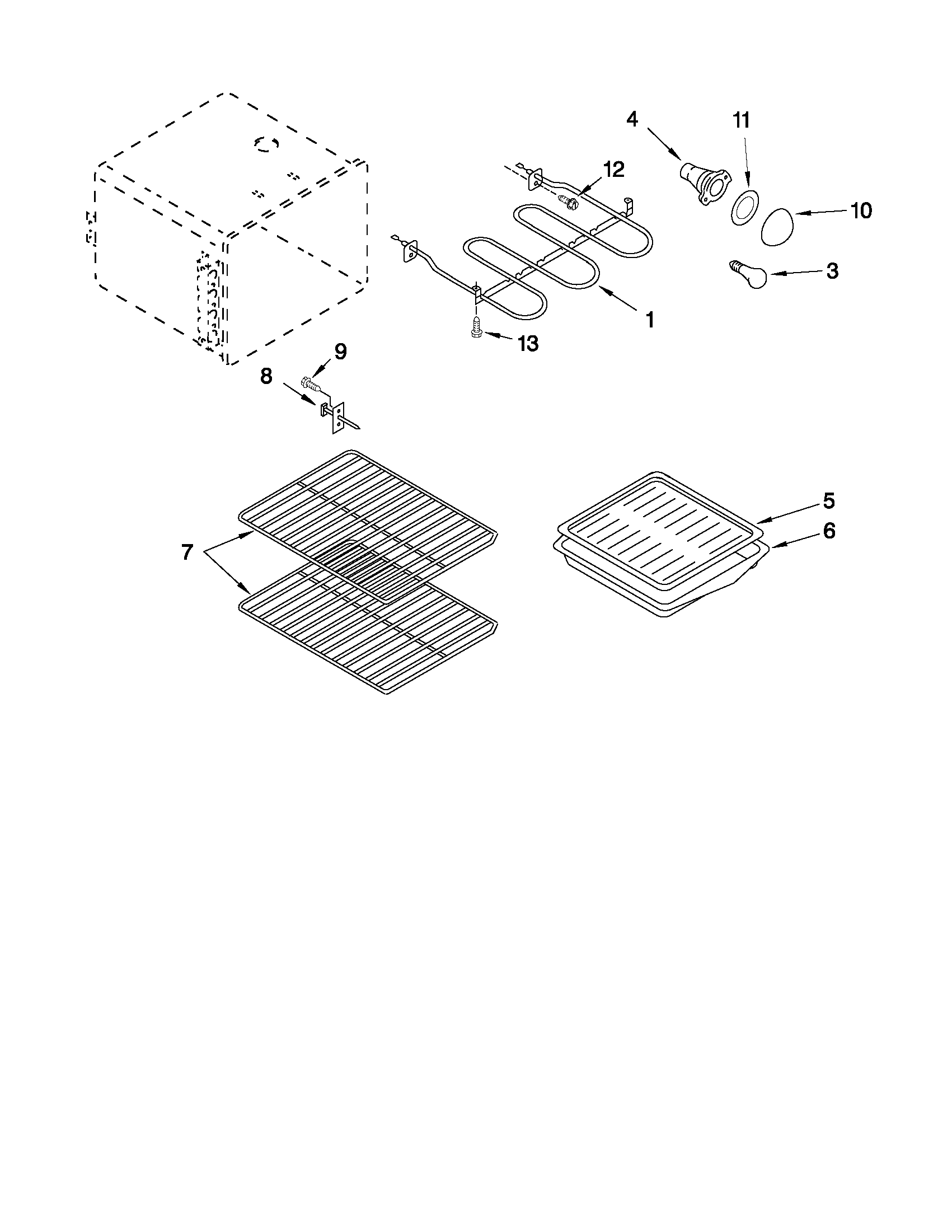

Oven Parts diagram
GJSP84902 Free Standing - Electric Oven Parts diagram

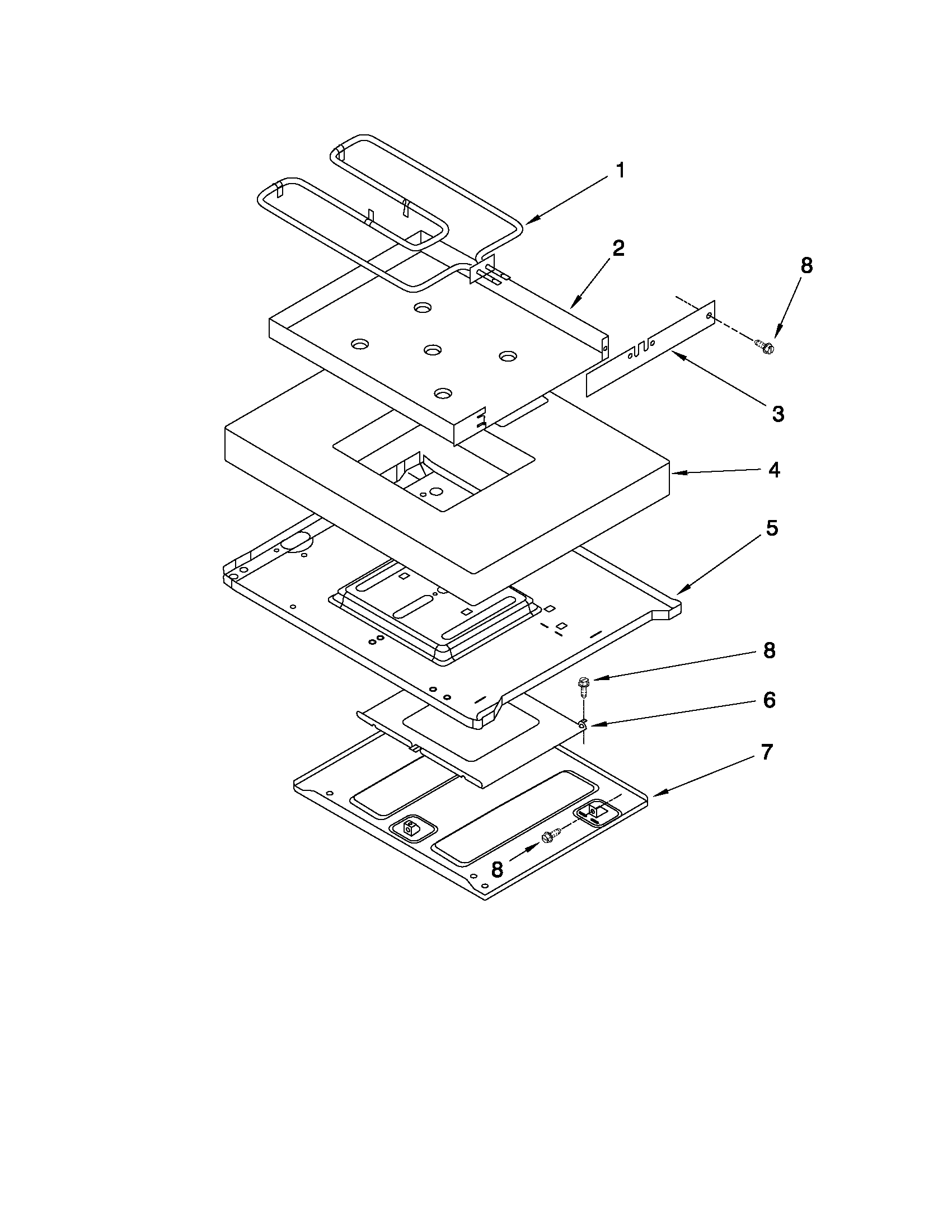

Hidden bake Parts diagram
GJSP84902 Free Standing - Electric Hidden bake Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Slave Lake, AlbertaThe oven will not reach and maintain the set temperature. I have replaced the oven thermal sensor with no result. I have also tried to set the offset on the timer. The temperature is always 200 degrees low.Repaired
Ste-Martine, QuebecPanel Control Part Number, EAP2325520. Failure Code, FF. Problem Description, Clock does not work anymore, and oven stop working intermittently few times during Oven cooking.
I wonder if the problem is cause by the timer or the control panel
Please let me know waht do you think that could cause that aobe describe problem
Awaiting receipt of timer
Léry, QuebecClock does not work anymore, and oven stop working intermittentlyAwaiting receipt of timer
North Vancouver, British ColumbiaTechnician called in to check. Oven will not heat up at all. Both the bake and broil settings. Tech said voltage in was fine, but very low going out (?)Repaired
Ste-Martine, QuebecTimer error AF721 cannot start oven
After electric Strike
Ste-Martine, QuebecMy electronic timer does not work after a thunderstorm.
Error code: E1 (red color) F1 (blue ) Flashing

According to Howard Simons, you have one replacement in stock and the defective timer is repairable at 100%
If it can't be repair please send me a rebuilt one

Hanover, OntarioAfter an electrical storm, I can't resent the error code.Repaired
Calgary, AlbertaWhen changing the light bulb, it got shorted. Even with a new light bulb, light doesn't turn on and no voltage at the light socket. Looks like need to replace the timer.

Please advise on availability as you indicated during my phone call. Thanks.
Replaced with reconditioned timer
Gatineau, QuebecThe Bottom Hidden element was replaced because old one was into pieces but It still will not heat up. I have verified the voltage going to the top element it is at 240V and bottom element only gets 30V. I suspect the controller to be faulty.Awaiting receipt of timer
Vancouver, British ColumbiaOven is not going to the temperature set
It goes to 150-200F and no more
Technician checked the unit and said that the timer is the problem
Pontypool, OntarioNo oven functionRepaired
Whitby, OntarioOven wont turn on... this happened after a power failure.Awaiting receipt of timer
Mulgrave & Derry, QuebecNo getting any heat from the oven. I tried the Bake and the Broil and can't get any heat. I was told to replace the oven sensor which I did and still didn't fix the problem.Replaced with reconditioned timer
Calgary, AlbertaOven does not heat to over 250 degrees. The bottom hidden element flared up and burned out (actually split in 2).Awaiting receipt of timer
Calgary, AlbertaOven does not heat to over 250 degrees. The bottom hidden element flared up and burned out (actually split in 2).Replaced with reconditioned timer
Saint-Laurent, QuébecOven bake element is not heating. Already replaced element to new one.Repaired
St. Thomas, OntarioTimer inoperable.Replaced with reconditioned timer
Cote Saint Luc, QuébecEnd of cycle tone does not sound. i.e. when heating up the oven upon reaching the set point and at the end of a countdown cycle. Everything else works fine. No error code but I have tried everything in the users' manual.Replaced with reconditioned timer
Oakville, OntarioWhen I called, I was told by Carol that the part is in stock :)Replaced with reconditioned timer
Toronto, OntarioRelay controlling the bake element is shorted. All other functions work perfectly. All I really need is the relay. Relay JW2AH-T-F-DC9V-Y8-H. I do not feel great paying 169.00 plus tax and shipping (plus shipping again when I return my current timer) for something I can repair with a 3$ part. Apparently this part is no longer in stock anywhere. Would you be willing to send me the part at a price that is good for you and for me? Ie. you make money and I feel good about the transaction. please email me if this is a possibility.Replaced with reconditioned timer

Common problems for Whirlpool Free Standing - Electric GJSP84902 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your GJSP84902 timer-related problem.
I have a whirlpool gold electric oven model number GJSP84902 purchased new in 2002. In the last week I have noticed a plastic burning smell, I remove the main control panel and noticed that one of the plugs on the back of the curcuit board was blackened. How easy is this to replace and how much is this unit?
I have a Whirlpool Gold Accubake System (9752834/5A) - Oven and range, 2001 model - a self cleaning oven (the self cleaner I haven't used). Recently the Bake oven temperature doesn't seem to work effectively. When baking, the inside of the food is still cold. When measuring it with a temperature gauge, the temperature goes on and off and takes a long time to get to the oven to the required temperature. What can I do and where can I purchase the part to install if broken? Thanks
Hello I have a Whirlpool Gold range (Accubake System). Last year after the power in my house when out, the panel does not show anything. when i put the oven on its always on celcius iand i have been trying to put it in farenheit, but have not had any luck. the clock also never show on the panel. i would appreciate any info to help me.
The oven light doesn't work. How do we test the circuit? And it is not the bulb. We changed it: No results. When we press on oven light knob, we hear 2 beeps, but no light. Everything else works. Hope it is not the computer because everything else works.
wirlpool oven model #gjsp84902 sn #1mmo212481 clock is stuck on clock function and will not change back to regular clock function, tried unpluging range but did not help.
My Whirlpool Gold oven does not lock when using the oven cleaning function. The locking mechamism just bangs as if it is trying to lock. Mike
Model #GJSP84902 I turned on the self-cleaning cycle and then immediately pressed off. It said END & locked. Then the message E1-F5-locked is displayed on the screen. I tried pressing all the buttons and nothing happens. This happened yesterday morning and it still says the same message this morning.
Whirlpool Gold Oven (GJSP84902) not heating from bake element. Oven not heating from bake element. I replaced the bake element (the previous bake element had a small gap in the element) but this did not solve the problem. What is the next step?
Hi, Done a lot of reading on this board, problem is still not resolved. Whirlpool Model #GJP84902, oven bake element stopped working. Removed original element, found pitted, measured no resistance. Replaced with new element, resistance measured (can't quite remember value, but it was either 28 Ohms or 40 Ohms I think). With oven on, past pre-heat (broiler element is OK), measured voltage between each terminal and ground = 100 V-AC. Voltage between the 2 terminals however, measured 0 V. Can't find a breaker/fuse on wiring diagram for bake element, only found for 2 electrical outlets. Not sure what to do next, is it the relay? If it is the relay, can someone post a picture of it?
