Magic Chef 31JA5KX Timer Repair

What is the timer/clock part number for the Magic Chef 31JA5KX Range?

Timer part number 7602P097-60 for Magic Chef 31JA5KX

The 31JA5KX Range uses timer part number 7602P097-60.

Do you have a failed Magic Chef 31JA5KX control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Magic Chef 31JA5KX timer.

31JA5KX are also sometimes referred to using these Alternative Names/Model numbers

Maytag 31JA5KX Range, Whirlpool 31JA5KX Range

31JA5KX Schematic and Wiring Diagrams

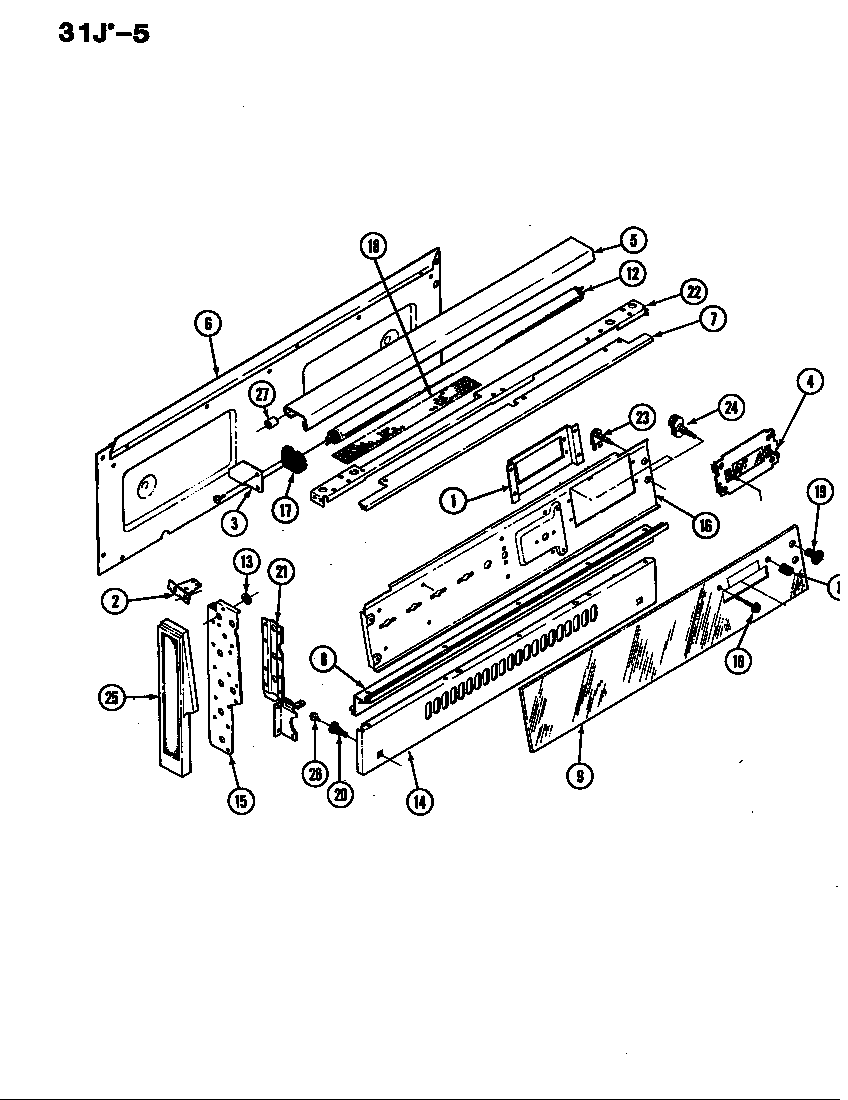

Control panel Parts diagram
31JA5KX Range Control panel Parts diagram

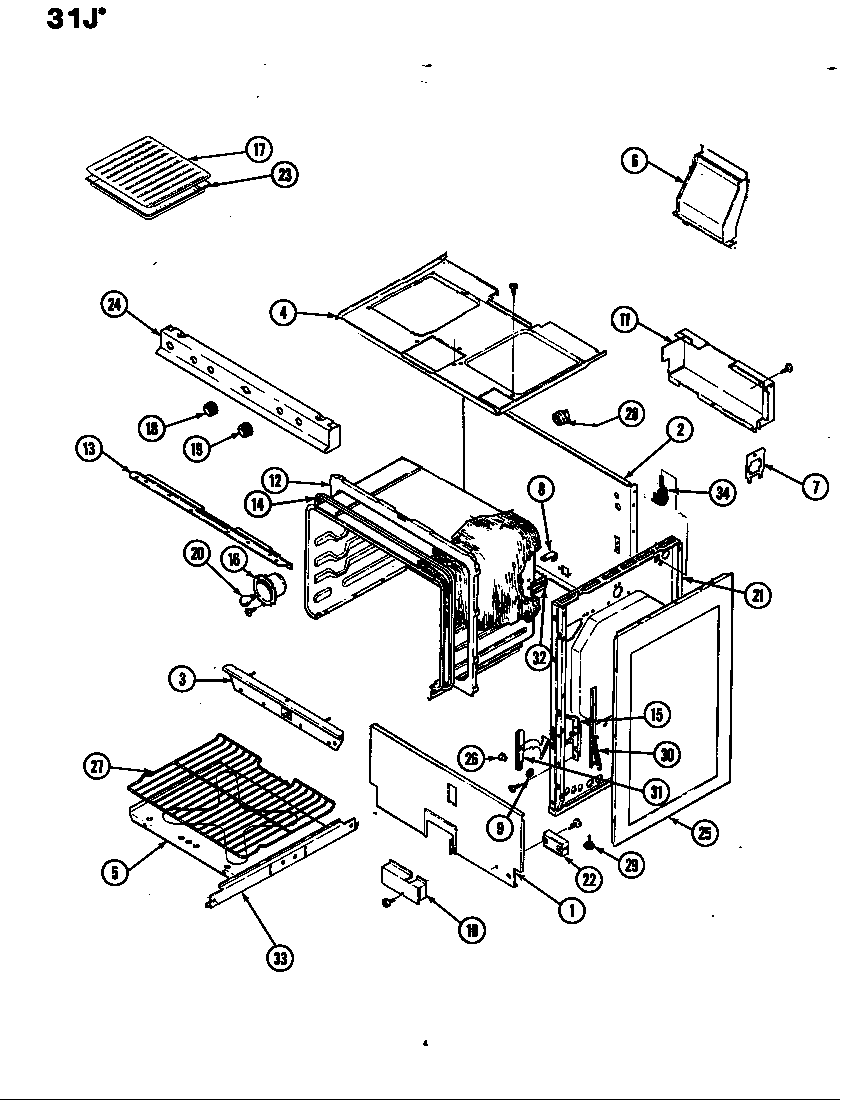

Body Parts diagram
31JA5KX Range Body Parts diagram

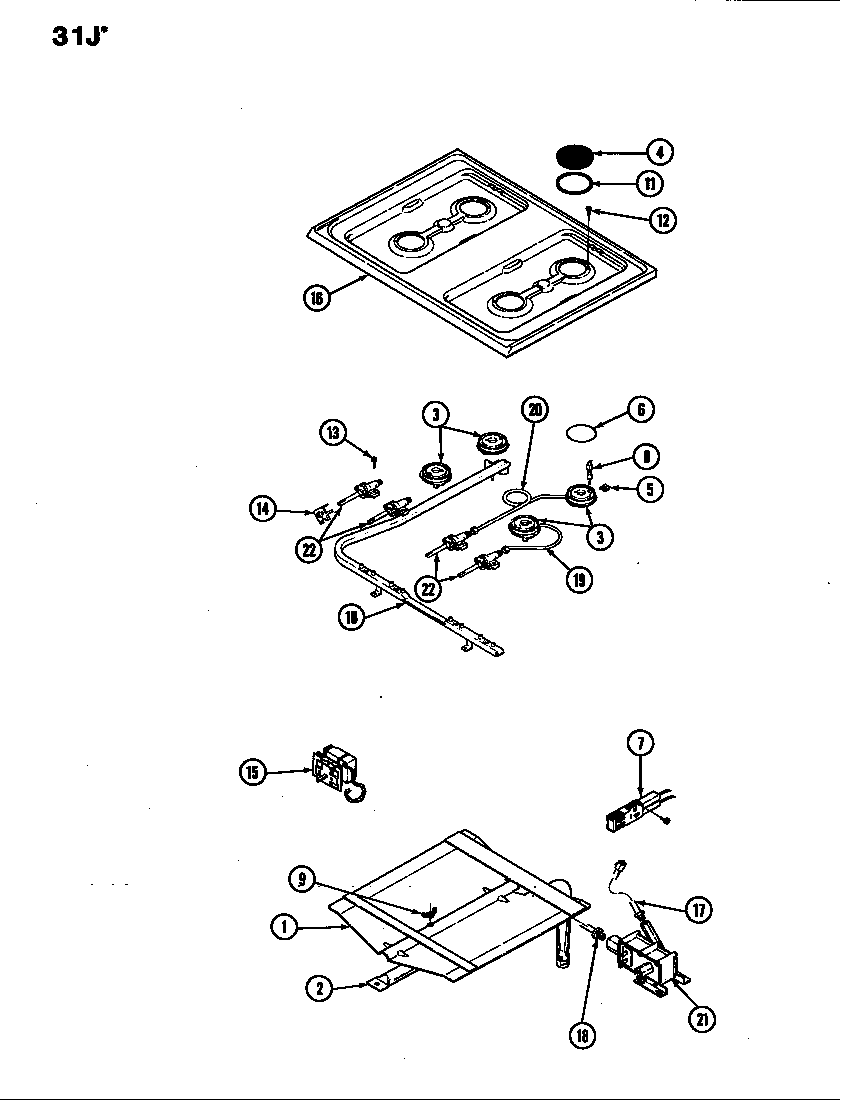

Top assy./control system Parts diagram
31JA5KX Range Top assy./control system Parts diagram

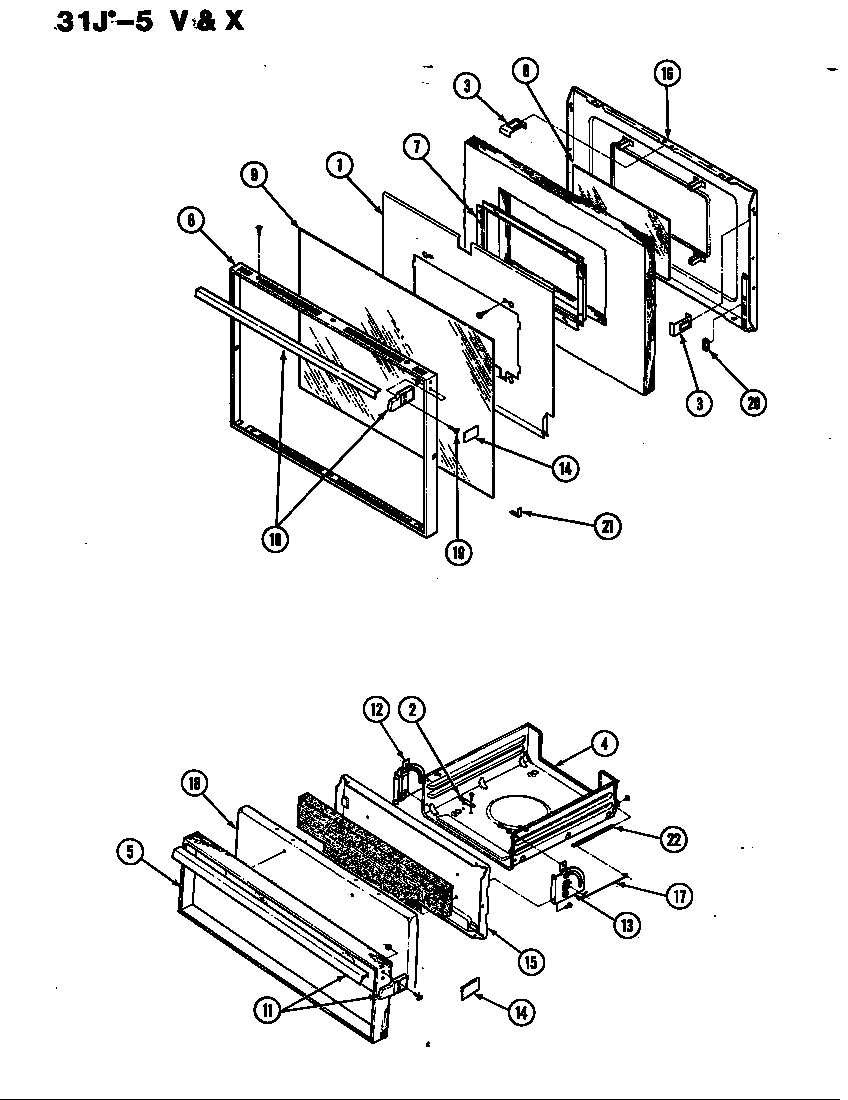

Door Parts diagram
31JA5KX Range Door Parts diagram
